OPERATING CONDITIONS

The VSE RS helical screw flow meters measure the flow rate based on the screw pump principle. The measurement of the volume flow with the RS innovative rotor profiles offers significant benefits such as a low- resistance, highly precise and pulsation-free measure- ment with minimal shear, lowest pressure losses as well as highest functionality based on intelligent sensor technology. Whether with low viscosity oil or with thick resin, the RS flow meters are the ultimate solution for precision flow measurement. With countless of possible options for size bearings, tolerances, materials, coat- ings, electronics, resolution & ATEX, there is an option to suit even the most demanding applications.

FLOW RANGE

0 up to 3,000 l/min

PRESSURE

up to 450 bar

TEMPERATURE

- 30°C up to +120°C

- 40°C up to +200°C with HT sensor system

FREQUENCY

up to 100 kHz

VISCOSITY

1 up to 1,000,000 cSt

ACCURACY

± 0.5% of measured value at viscosity of > 21 cSt

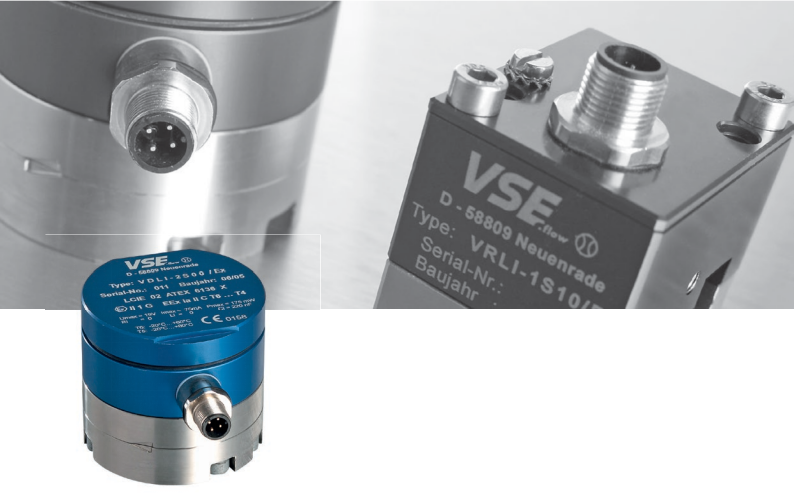

VSI SERIES

POSITIVE DISPLACEMENT GEAR FLOW METER

The positive displacement flow meters of the VSI series measure the volume flow of liquids according to the meshing gear principle. Two matched gear wheels are precisely fitted in the housing. The rotation of the measuring unit is detected tooth-by-tooth by a non- contact signal pick-up system and is converted into digital pulses. The precision gear flow meters of the VSI series offer unrivaled performance, linearity and resolution for most accurate measurement of clean viscose liquids. They are available in cast iron and stainless steel versions to suit your application.

OPERATING CONDITIONS

VHM SERIES

POSITIVE DISPLACEMENT GEAR FLOW METER

The positive displacement gear flow meters of the VHM series are based on the meshing gear principle and are suitable for a wide variety of liquids, especially liquids with high abrasiveness and poor lubricity. Each tooth generates an impulse by recognition of the gear rota- tion by a non-contact detection system according to the carrier frequency principle. The VHM flow meters are available with single, double or quadruple resolution and signal-output with NPN- or PNP-switching mode. Additionally, the flow meters are dead spaced opti- mized for (easy flushing) use in the paint industry and for paint spraying systems.

OPERATING CONDITIONS

FLOW RANGE

0.01 up to 20 l/min

PRESSURE

up to 250bar

TEMPERATURE

- 20°C up to +120°C

FREQUENCY

up to 1,000 Hz

VISCOSITY

1 up to 20,000 cSt

              ACCURACY

± 0.5% of measured value at viscosity >10 cSt

± 1% of measured value at viscosity <10 cSt

The VSE EF ecoflow has been developed as a response to customer demands for all the performance of the tradi- tional VSI flow meter but with a lightweight and more cost effective design, making them ideal for lower pres- sure hydraulics, lubrication systems, spray coatings and with high temperature options for hotmelt adhesives. The Aluminum flow meter VSE EF ecoflow uses the same gear set as the VSI and is based on the same meshing gear principle. The VSE EF ecoflow measures viscous media, however as in-line-device.

OPERATING CONDITIONS

FLOW RANGE

0.05 up to 150 l/min

PRESSURE

up to 200 bar

TEMPERATURE

- 0°C up to +80°C

FREQUENCY

up to 1,666.7 Hz

VISCOSITY

1 up to 10,000 cSt

ACCURACY

± 2% of measured value at viscosity 21 cSt

Turbine flow meters are precise and reliable measur- ing equipment, designed for varied applications. Basically, the VTR series consists of a rotor, the housing and the measurement pick-up. As a result of the specific inner diameter, the turbine’s revolu- tions are directly proportional to the flow. VTR flow meters can be installed even under the harshest appli- cation conditions including oil, petrochemical and chemical industries as well as other industrial sectors. All VTR flow meters are individually calibrated.

OPERATING CONDITIONS

FLOW RANGE

110 l/h up to 4,500 m³/h

PRESSURE

up to 250 bar

TEMPERATURE

- 40°C up to +120°C

FREQUENCY

up to 1,300 Hz

VISCOSITY

1 up to 5 cSt

*threaded connectionsFurther sizes are available on request

SPECIAL OPTIONS

Within the shortest development times, VSE designs customer-specific flow meters with high-precision results. We develop solutions with all common materials like steel, stainless steel, titanium, aluminium and bronze. During all stages of planning and production, we work closely with the customer.

2-component measurement

In close cooperation with our affiliated companies DST and Beinlich we can offer complete systems with pump and permanent magnetic coupling according to the customer’s individual requirements and thus achieve optimal performance for our cli

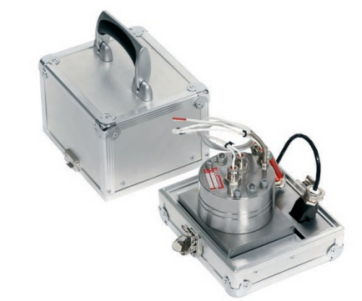

VSE offers a range of transport case systems for the safe transportation of flow meters and evaluation units. The flow meter can be stored in a separate special case within the transportation box to protect the evaluation electronics against contamination of potentially leaking fluid.
